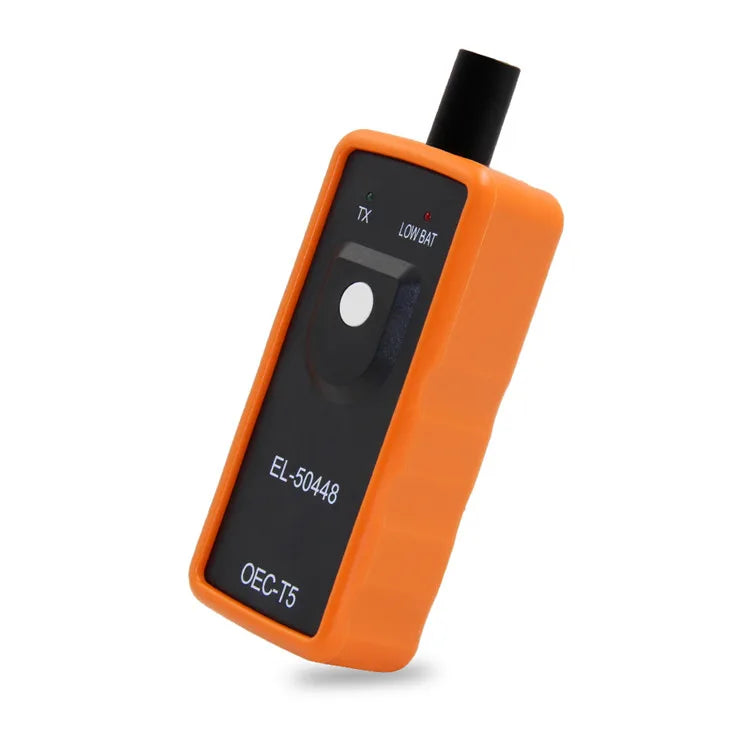

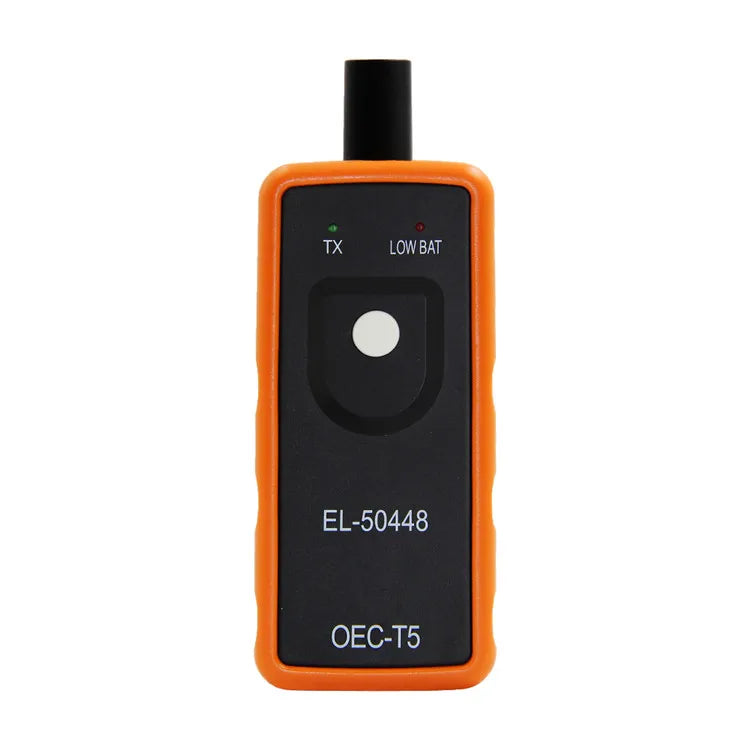

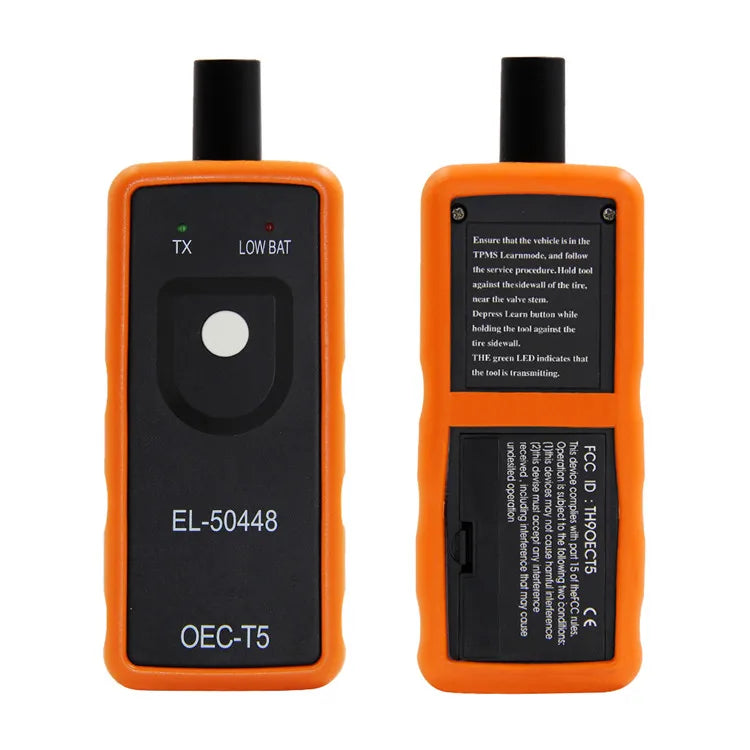

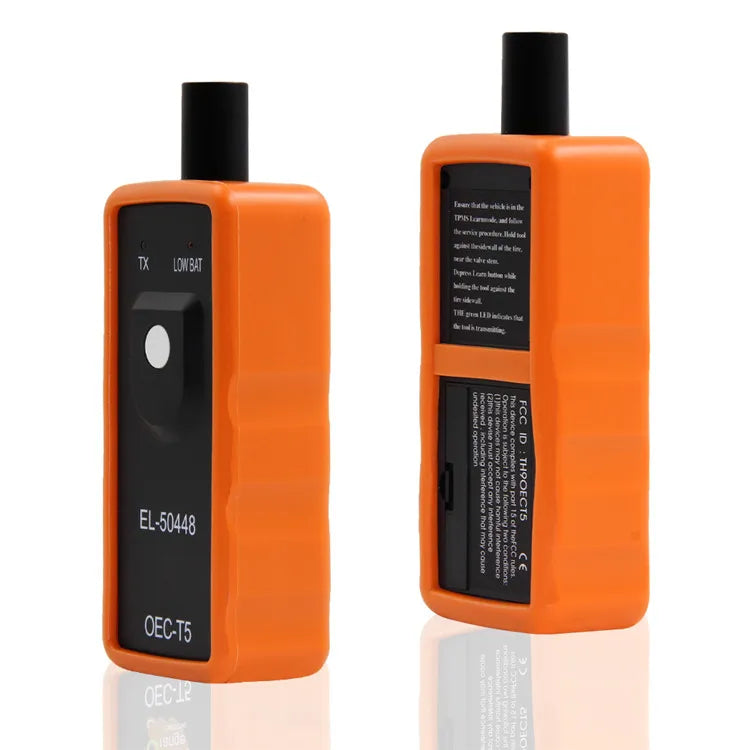

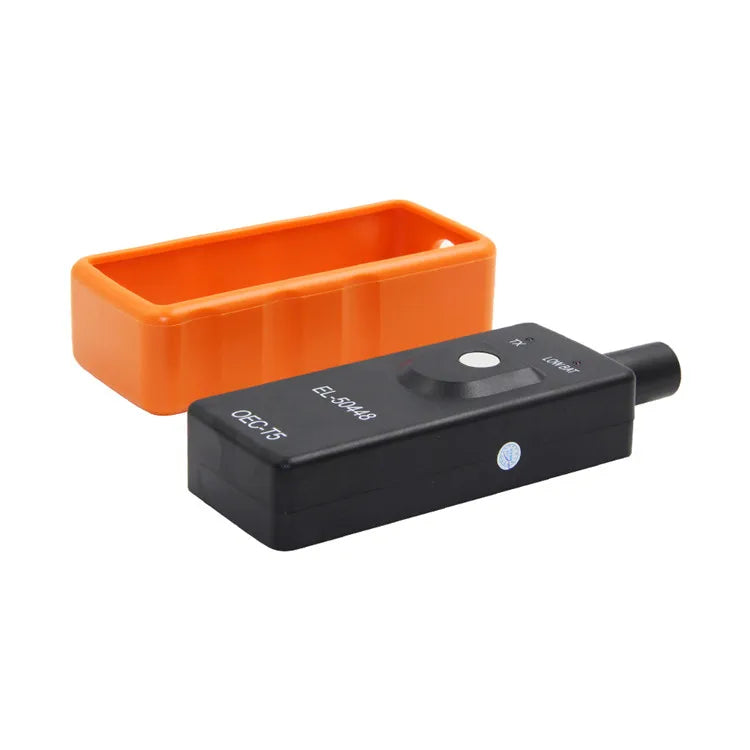

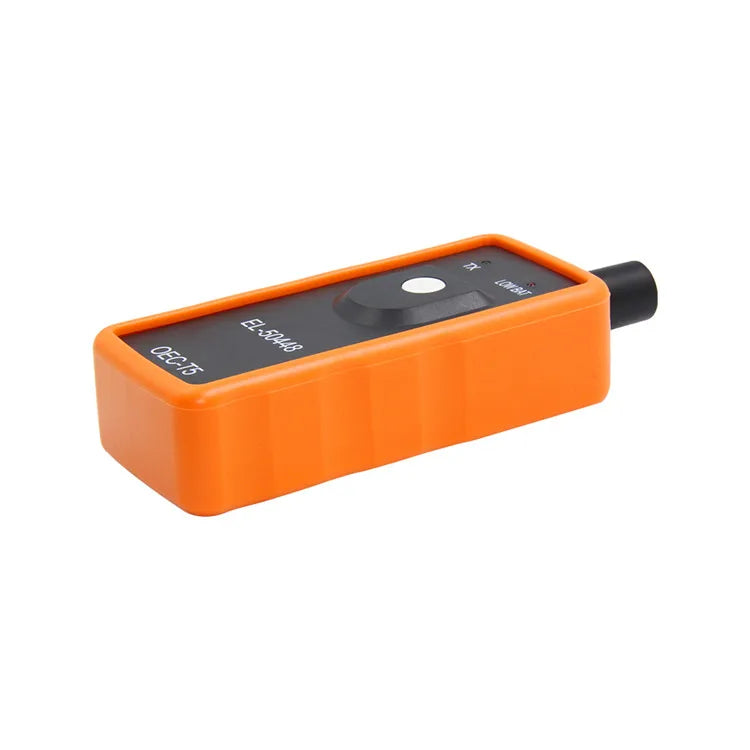

EL-50448 Tire Pressure M-onitoring Sensor TPMS Activation Tool OEC-T5 for GM Cars
EL-50448 Tire Pressure M-onitoring Sensor TPMS Activation Tool OEC-T5 for GM Cars
Couldn't load pickup availability
EL-50448 Tire Pressure M-onitoring Sensor TPMS Activation Tool OEC-T5 For GM cars
For for GM vehicles equipped with a 315 or 433 MHz Tire Pressure M-onitoring (TPM) system, a "Sensor Re-Learn Procedure" must be performed after tire rotations, Remote Control Door Lock Receiver Module replacement or Tire Pressure Sensor replacement. This re-learn procedure can be performed by using special tool EL-50448.Also works on 2014 for GM models
EL-50448 Tire Pressure M-onitoring Sensor TPMS Activation Tool OEC-T5
The tire pressure sensor on models in & after 2012 can be read, only with some specified diagnostic tools.
Before tire pressure m-onitoring system works normally properly, the body control module will record ID information of each position in the tire pressure sensor; and use the following methods to read the tire pressure sensor after replacing a tire or wheel speed sensor. Please refer to the specific methods as follows:
EL-50448 instructions:
EL50448 works on all General Motors (for Buick, for Cadillac, for Chevrolet, for for GMC) products manufactured for the North American market. It won't work if you've purchased aftermarket sensors that are the wrong frequency. EL50448 fit for G.M most kind of vehicles, equipped with a 315 or 433 MHz Tire Pressure M-onitoring (TPM) system. This re-learn procedure can be performed by using special tool EL-50448.
EL-50448 Specification:
|
Item Height:10 inch |
|
Item Width:15 inch |
|
Item Length:20 inch |
|
Item Weight:0.3kg |
|
Hardware Version:OEC-T5 |
|
Software Version:EL-50448 |
|
External Testing Certification:CE |
|
Material Type:High quality plastic & metal |
User guild:
1. Step 1 - Enter leaning mode
Set the gearshift lever to "P"
Put the ignition switch to “ON”
Enter the interface of tire pressure display by DIC
DIC shows "Press Set / Ctrl to re-learn"
Press “Set / Ctrl”
The turn signal is lighted for 3 seconds and the horn beep sound twice to enter the learning mode
2. Step 2 - Read tire pressure sensor information
Start from the front-left wheel,
Make the J-46079 or Diagnostic Tool EL-50448 antenna up against the valve core position & close to the rim of the tire sidewall
El-50448 tire pressure tool starts by the start switch
Successful to read the tire pressure sensor information when the horn bleeps once
3. Step 3 - Same method to read other tire pressure information
Follow the instuction above to read tire pussure of the front-right, rear-right, rear-left wheels.
Turn signals is lighted for 3 seconds and the horn bleeps twice when the learning is complete.
For certain vehicles equipped with a Tire Pressure M-onitoring (TPM) system, a "Sensor Re-Learn Procedure" must be performed after tire rotations, Remote Control Door Lock Receiver Module replacement or Tire Pressure Sensor replacement. This re-learn procedure can be performed by using special tool 50448
Compatible with 9V batteries
